Padeye Tester, 50-200t SWL
- Name of Project: Padeye Tester, heavy duty from 50t to 200t SWL
- Scope of Work: Design of a system able to test the padeyes installed on deck; selection of the hydraulic cylinder with hollow piston; surveillance to fabrication; first utilization on board and load test reporting.
- Additional: Verification of the deck structure invoolved by the utilization of the padeye tester

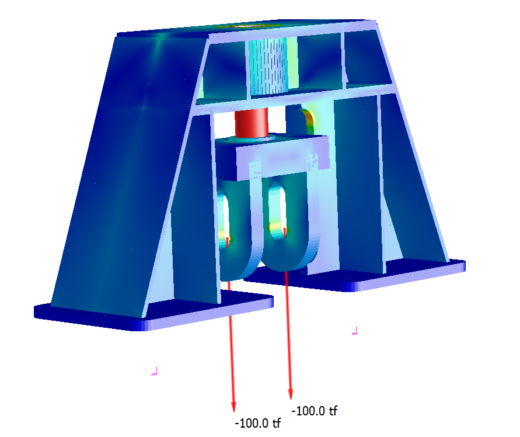

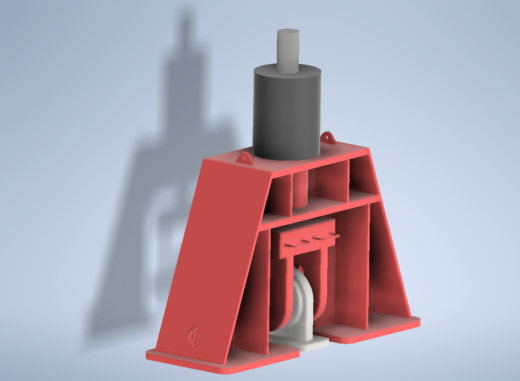

- Method: 3D parametric prototyping; strcutural analysis combined plate/brick finite element analysis;
- Ref. Standard: Ship’s Class Rules; DNV-ST-N001; LR CLAME; DNVGL-ST-E273.
- Client: confidential
